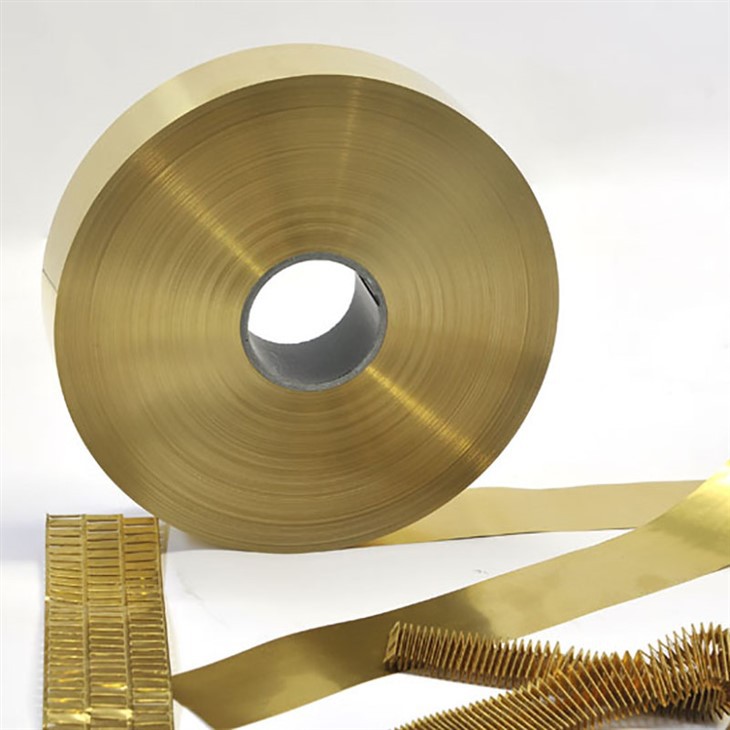

Brass Strip For Tank
Brass Strip -H65, a copper-zinc alloy, is equivalent to C26800 in ASTM. This material is mainly used for tank.
Brass strip for tank
Brass Strip -H65, a copper-zinc alloy, is equivalent to C26800 in ASTM. This material is mainly used for tank.
Brass strip is a long, thin piece of brass material that is typically flat, with a rectangular or square cross-section. It is commonly used for a variety of applications, including decorative trim, hardware, electrical conductivity, and industrial applications such as springs and valves.
Brass strips may be made from different grades of brass, with varying compositions and properties, depending on the specific application requirements. It is generally available in a variety of sizes and thicknesses and can be cut to custom lengths as required.
Chemical Composition
|
Cu |
Zn |
|
64-68(wt%) |
balance |
Mechanical Properties
|
Temper |
Temper |
JIS |
Tensile Rm MPa |
Hardness HV |
|
Hard |
Y |
H |
380-480 |
100-140 |
|
Extra hard |
T |
EH |
≥460 |
≥135 |
|
Note： We can provide products with other properties according to customers` requirements. |
||||
Physical Properties
|
Density： 8.5g/cm³ Electronic conductivity(20°C): 27%IACS Thermal conductivity(20°C): 120W/(m°C) Elastic modulus: 105000N/mm² Thermal expansion coefficient(20-300°C): 20 X 10-6°C -1 |
Sizes and Tolerances
|
Thickness (mm) |
Thickness Tolerances (mm) |
Width (mm) |
Width Tolerances (mm) |
|
0.04-0.06 |
±0.003 |
16-210 |
±0.08 |
|
＞0.06-0.10 |
±0.005 |
Specifications Available
|
Thickness (mm) |
Width (mm) |
Temper |
|
|
0.04-0.1 |
16-210 |
Y，T |
|
|
Inner diameter of coil:78mm,102mm and 150mm. |
|
||
Brass strip for tank is an essential component that provides stability, durability, and corrosion resistance to the tank. It is widely used in various industries such as automotive, aerospace, construction, and plumbing, among others.
Brass strips have excellent corrosion resistance properties, making them ideal for use in tanks that store corrosive substances. They do not react with common acids and bases, making them useful in chemical industries. Brass strips also have high durability and can withstand extreme temperatures and pressure, making them perfect for use in tanks subjected to harsh conditions.
The brass strip is made of high-quality brass alloy, which is a combination of copper and zinc. This material is known for its excellent properties such as malleability, ductility, and toughness. These properties make brass strips suitable for forming into different shapes and sizes, depending on the requirements of the tank.
Hot Tags: brass strip for tank, China brass strip for tank manufactures, factory, CuZn35 Brass Strip for Tube, Brass strip for radiator, Header Plate and Tank Brass Strip, Radiator Tube Brass Strip, CuZn38 Brass Strip
